Industrial Metal Hoses
In today’s demanding industrial environments, standard hoses often struggle with high temperatures, corrosive chemicals, and constant pressure. The result? Unexpected downtime, rising maintenance costs, and serious operational risks.
Because reliability isn’t optional — it’s critical.
When your equipment fails, productivity slows, costs increase, and your operations lose momentum exactly when performance matters most.
That’s where Prime IFS makes the difference.
Prime IFS delivers a comprehensive range of high-performance industrial metal hoses, engineered to perform reliably even in the harshest conditions. Whether it’s fluid transfer or transporting aggressive chemicals at extreme temperatures, Prime IFS solutions ensure consistent, long-lasting performance you can trust.
Designed with precision and built for durability, all products comply with DIN EN ISO 10380 standards, helping you meet both operational and regulatory demands with confidence.
With Prime IFS, you get:
✔ Enhanced system reliability
✔ Reduced downtime and maintenance costs
✔ Longer service life
✔ Safe handling of extreme applications
Prime IFS — Powering Industrial Reliability.

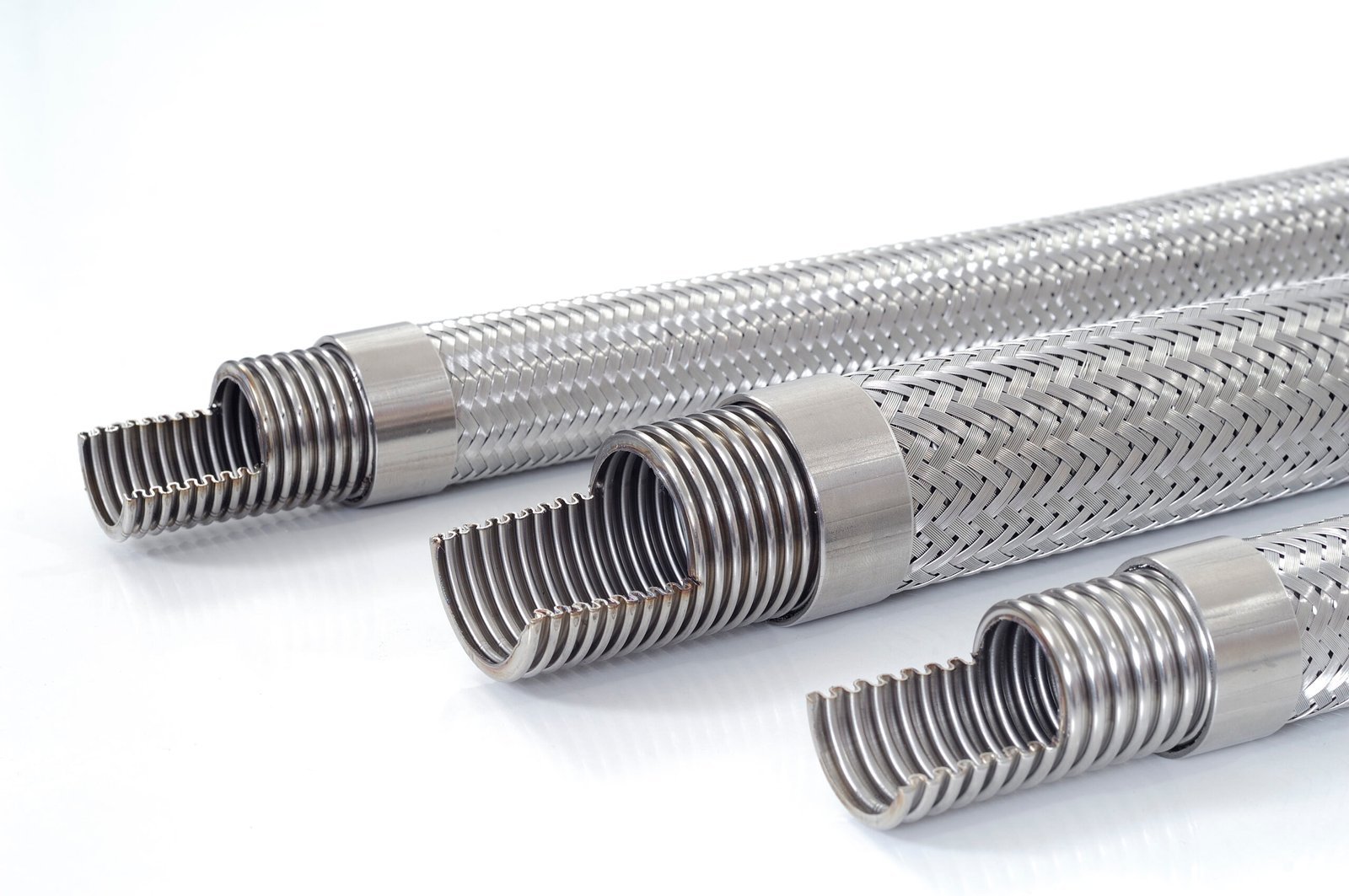

Standard Corrugated Metal Hose
|
SNF: STANDARD CORRUGATED HOSE DIMENSIONS DATA SHEET |
||||||||||
| DN | Inch | Model | Internal Diameter | Outside Diameter | Tolerance | Minimum Bending Radius | Nominal Bending Radius | Nominal Pressure DIN EN ISO 10380/SF4 |
|||
| [mm] | [mm] | [mm] | rmin [mm] | rn [mm] | PN [bar] | ||||||
| 6 | 1/4″ | Non-braided | 6.3 | 9.6 | ± 0,20 | 15 | 80 | 24 | |||
| Braided | 11.3 | 25 | 150 | ||||||||
| 8 | 5/16″ | Non-braided | 8.3 | 12.4 | ± 0,20 | 16 | 125 | 17 | |||
| Braided | 13.8 | 32 | 140 | ||||||||
| 10 | 3/8″ | Non-braided | 9.8 | 14.2 | ± 0,20 | 18 | 130 | 12 | |||
| Braided | 15.7 | 38 | 105 | ||||||||
| 12 | 1/2″ | Non-braided | 12.5 | 16.7 | ± 0,20 | 20 | 139 | 9 | |||
| Braided | 17.6 | 45 | 70 | ||||||||
| 16 | 5/8″ | Non-braided | 16.0 | 21.2 | ± 0,20 | 28 | 165 | 7 | |||
| Braided | 23.2 | 58 | 65 | ||||||||
| 20 | 3/4″ | Non-braided | 20.5 | 26.7 | ± 0,20 | 32 | 175 | 6 | |||
| Braided | 28.2 | 70 | 55 | ||||||||
| 25 | 1″ | Non-braided | 25.5 | 31.7 | ± 0,30 | 40 | 190 | 3 | |||
| Braided | 33.6 | 85 | 49 | ||||||||
| 32 | 1 1/4″ | Non-braided | 34.0 | 41.3 | ± 0,30 | 50 | 260 | 2.5 | |||
| Braided | 43.5 | 95 | 35 | ||||||||
| 40 | 1 1/2″ | Non-braided | 40.2 | 49.9 | ± 0,30 | 60 | 300 | 2 | |||
| Braided | 52.3 | 130 | 30 | ||||||||
| 50 | 2″ | Non-braided | 50.4 | 60.3 | ± 0,40 | 70 | 320 | 1.6 | |||
| Braided | 62.5 | 160 | 26 | ||||||||
| 65 | 2 1/2″ | Non-braided | 66.1 | 77.0 | ± 0,50 | 115 | 460 | 1.3 | |||
| Braided | 80.5 | 200 | 25 | ||||||||
| 80 | 3″ | Non-braided | 80.2 | 95.1 | ± 0,50 | 130 | 660 | 1.5 | |||
| Braided | 97.9 | 240 | 16 | ||||||||
| 100 | 4″ | Non-braided | 100.1 | 116.3 | ± 0,50 | 160 | 750 | 1 | |||
| Braided | 119.6 | 290 | 10 | ||||||||
Looking for a hose that delivers both flexibility and strength?
In industrial environments where performance and durability are non-negotiable, choosing the right hose can make all the difference. Many solutions compromise between flexibility and strength — but you shouldn’t have to.
With Prime IFS Standard, you get both.
The Prime IFS Standard is our flagship industrial metal hose, engineered to handle a wide range of fluid transfer applications with confidence. Its mechanically formed corrugated design provides the perfect balance between flexibility and structural strength, ensuring reliable performance across demanding conditions.
Built to perform in extreme environments:
✔ Wide temperature resistance: From -270°C to 600°C, ideal for both cryogenic and high-heat applications
✔ Durable construction: Mechanically corrugated with optimized pitch for long-term resistance to wear and environmental impact
✔ Flexible configurations: Available with single wire braid for higher pressure resistance or without braid for lower-pressure needs
✔ Leak-proof reliability: Advanced manufacturing ensures superior sealing performance and operational safety
Versatile across critical industries:
The Prime IFS Standard is trusted in chemical, petrochemical, cryogenic, nuclear, and thermal industries, delivering dependable performance where failure is not an option.
It is especially well-suited for static installations and systems with low-amplitude cyclic movements, offering consistent durability over time.
Prime IFS Standard — Engineered for Performance. Built for Reliability.

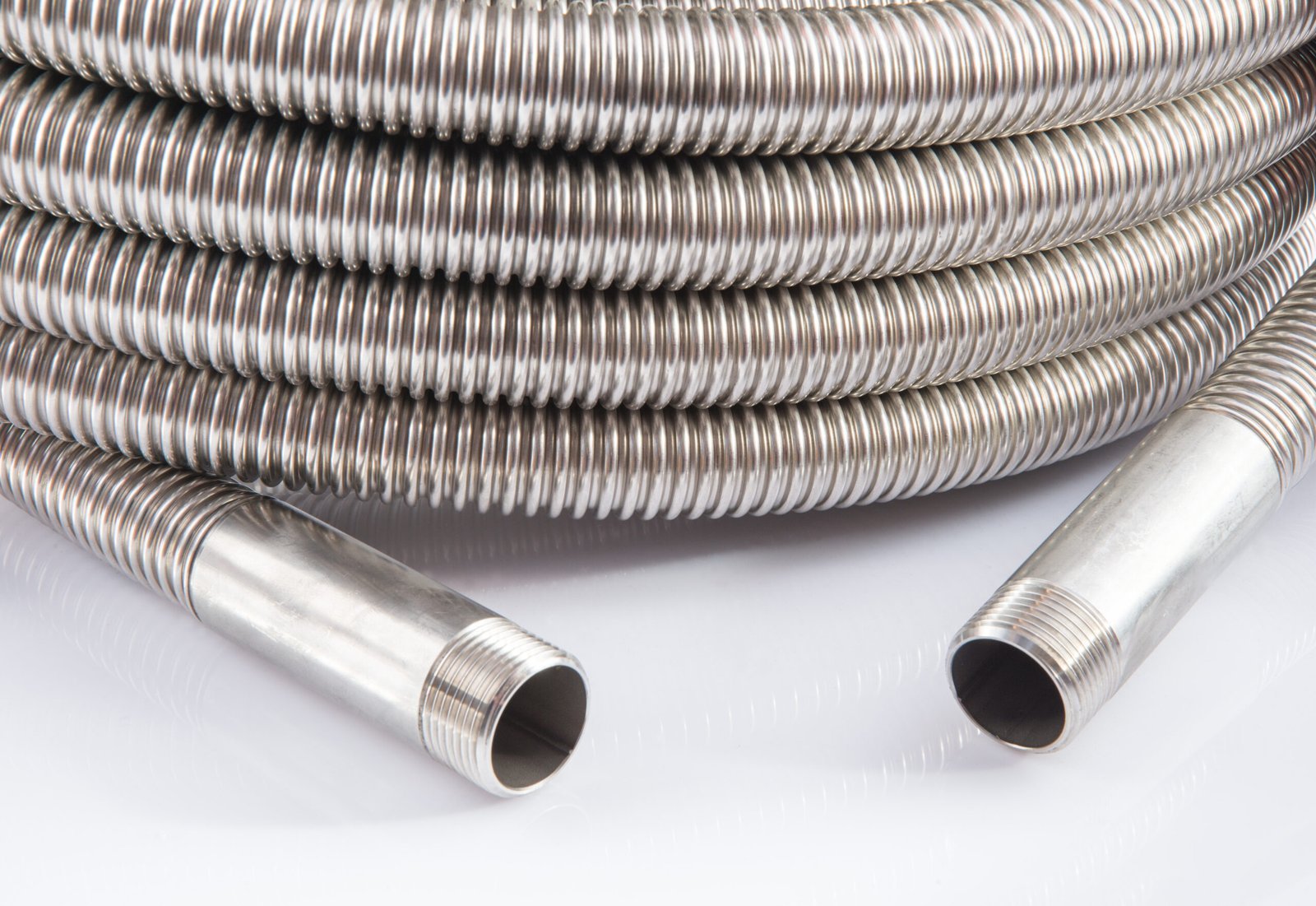

Wide Pitch Corrugated Metal Hose
|
|
WNF: WIDE PITCH CORRUGATED HOSE DIMENSIONS DATA SHEET | ||||||||||
| DN | Inch | Model | Internal Diameter | Outside Diameter | Tolerance | Minimum Bending Radius | Nominal Bending Radius | Nominal Pressure DIN EN ISO 10380/SF4 |
|||
| [mm] | [mm] | [mm] | rmin [mm] | rn [mm] | PN [bar] | ||||||
| 12 | 1/2″ | Non-braided | 12.0 | 16.3 | ± 0.20 | 20 | 100 | 21 | |||
| 16 | 5/8″ | Non-braided | 16.5 | 21.3 | ± 0.20 | 25 | 120 | 16 | |||
| 20 | 3/4″ | Non-braided | 20.8 | 26.2 | ± 0.20 | 30 | 160 | 10 | |||
| 25 | 1″ | Non-braided | 25.8 | 31.5 | ± 0.30 | 35 | 200 | 9 | |||
| 32 | 1 1/4″ | Non-braided | 33.8 | 40.2 | ± 0.30 | 40 | 380 | 4 | |||
| 40 | 1 1/2″ | Non-braided | 40.6 | 49.5 | ± 0.30 | 65 | 500 | 3.5 | |||
| 50 | 2″ | Non-braided | 50.7 | 60.1 | ± 0.40 | 75 | 650 | 3 | |||
Need a hose that’s easier to clean and more efficient to operate?
In industries where hygiene, efficiency, and flow performance matter, standard hose designs can create challenges — from difficult cleaning processes to unnecessary pressure loss.
Prime IFS Wide is designed to solve exactly that.
The Prime IFS Wide features a broader corrugation pitch, resulting in a lighter, more efficient hose that simplifies cleaning while reducing pressure drop. It’s the ideal solution for applications where cleanliness and smooth flow are essential.
Engineered for performance and practicality:
✔ Extreme temperature resistance: Operates reliably from -270°C to 600°C
✔ Wide pitch construction: Mechanically formed for improved flexibility and reduced weight
✔ Easy cleaning design: Optimized for hygienic applications, especially in food and beverage environments
✔ Leak-resistant integrity: Ensures safe, efficient, and long-term operation
Built for versatile industrial use:
Prime IFS Wide is widely used for loading and unloading tank trucks, handling gases, chemicals, and both hot and cold media with ease.
It also performs exceptionally well as a self-supporting annular corrugated hose in device pipelines and heating system connections.
Thanks to its sanitary-friendly design, it is a preferred choice in the food industry, where cleanliness and reliability go hand in hand.
Prime IFS Wide — Efficiency Meets Clean Design.

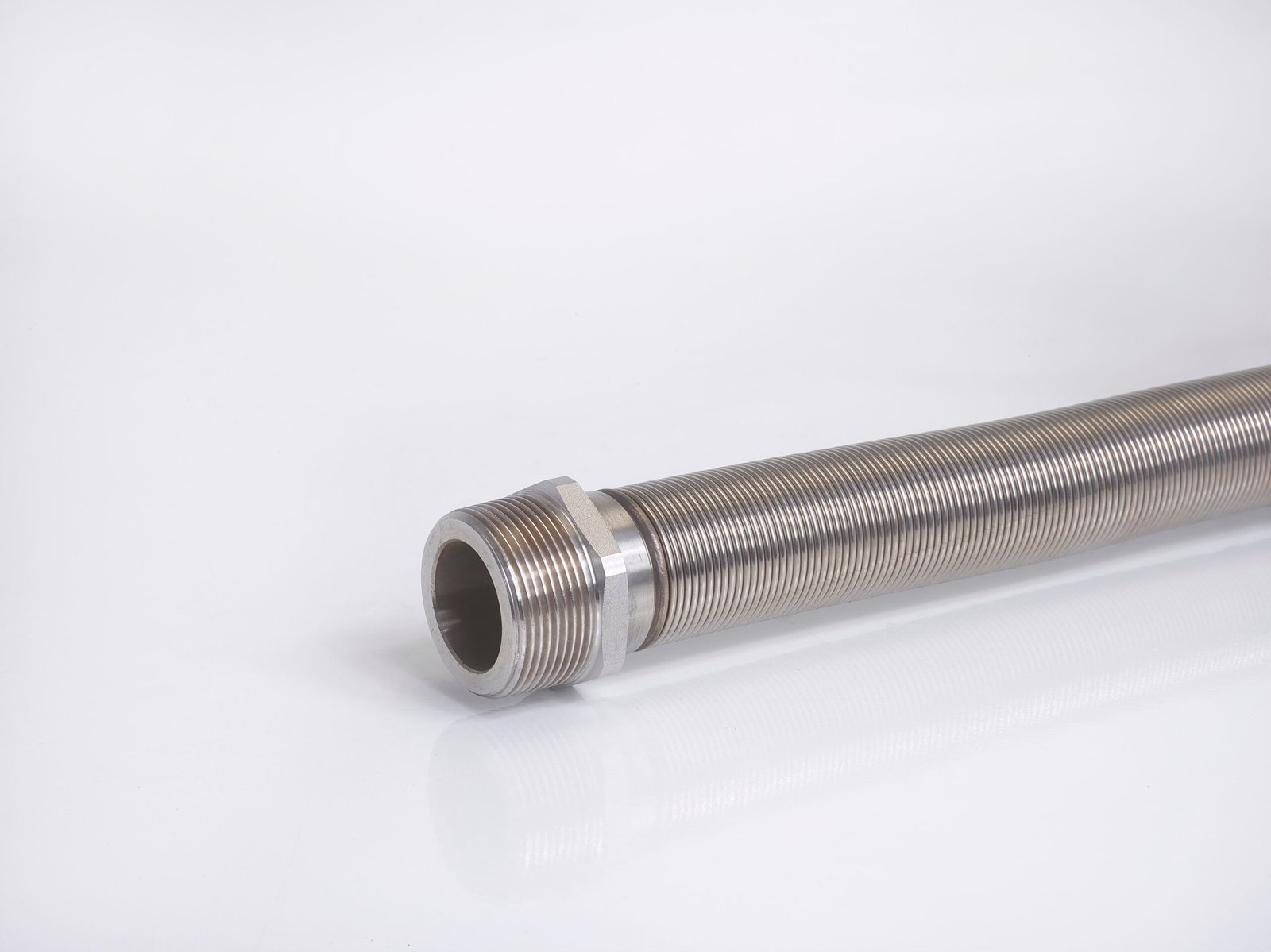

High-Flexibility Corrugated Metal Hose
Need maximum flexibility in high-motion environments?
In applications where constant movement, vibration, and tight bending are unavoidable, standard hoses quickly reach their limits — leading to fatigue, failure, and costly downtime.
Prime IFS Pro is built for dynamic performance.
The Prime IFS Pro is specifically engineered to deliver exceptional flexibility and durability under continuous motion. Its closed-pitch corrugation design allows it to perform reliably even in the most demanding dynamic conditions.
Designed to move with your system — not against it:
✔ Extreme temperature resistance: From -270°C to 600°C, suitable for both cryogenic and high-temperature environments
✔ Ultra-flexible construction: Mechanically formed with a tight, closed corrugation pitch for superior bending capability
✔ Adaptable configurations: Available with single wire braid for higher pressure containment or without braid for maximum flexibility
✔ Dynamic performance: Built to withstand repetitive motion, intense vibration, and continuous mechanical stress
Engineered for demanding applications:
Prime IFS Pro is ideal for liquid and gas transport in vacuum technology, petrochemical, and nuclear systems, where precision and reliability are critical.
It is also widely used in instrumentation lines, automotive exhaust systems, and advanced HVAC applications, delivering consistent performance under dynamic conditions.
Even in cryogenic environments, Prime IFS Pro maintains its flexibility — ensuring reliable operation where many alternatives fail.
Prime IFS Pro — Maximum Flexibility. Unmatched Endurance.

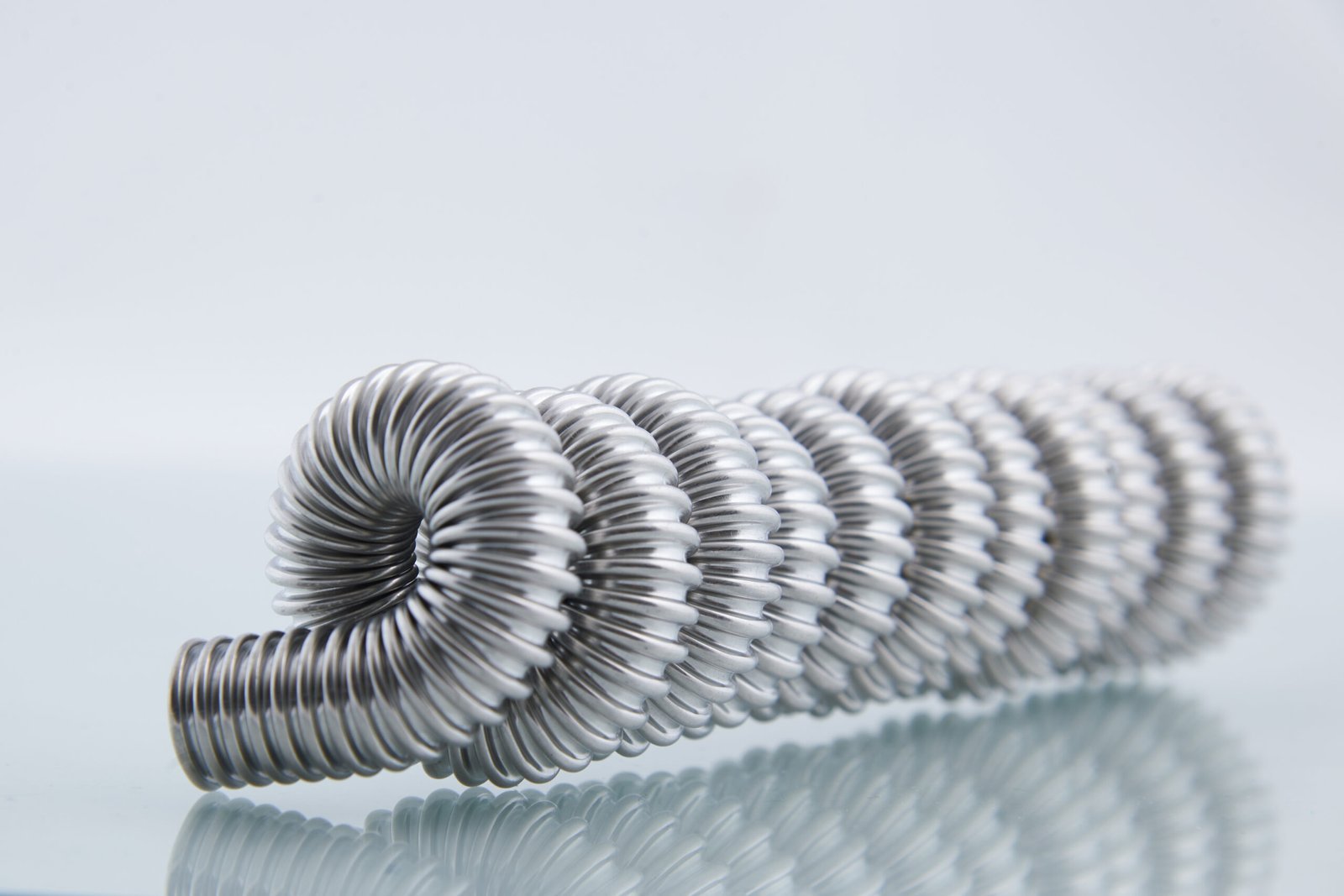

Heavy-Duty Standard Corrugated Hose (PRIME IFS HD)
|
HSNF: HIGH PRESSURE STANDARD CORRUGATED HOSE DIMENSIONS DATA SHEET | ||||||||||
| DN | Inch | Model | Internal Diameter | Outside Diameter | Tolerance | Minimum Bending Radius | Nominal Bending Radius | Nominal Pressure DIN EN ISO 10380/SF4 | |||
| [mm] | [mm] | [mm] | rmin [mm] | rn [mm] | PN [bar] | ||||||
| 6 | 1/4″ | Non-braided | 6.1 | 9.5 | ± 0,20 | 17 | 110 | 40 | |||
| Braided | 11.3 | 25 | 180 | ||||||||
| 8 | 5/16″ | Non-braided | 8.3 | 12.4 | ± 0,20 | 16 | 130 | 50 | |||
| Braided | 13.8 | 32 | 200 | ||||||||
| 10 | 3/8″ | Non-braided | 9.5 | 14.1 | ± 0,20 | 18 | 130 | 25 | |||
| Braided | 15.7 | 38 | 105 | ||||||||
| 12 | 1/2″ | Non-braided | 12.4 | 16.8 | ± 0,20 | 20 | 139 | 7 | |||
| Braided | 17.8 | 45 | 70 | ||||||||
| 16 | 5/8″ | Non-braided | 16.3 | 21.8 | ±0.20 | 28 | 195 | 17 | |||
| Braided | 23.3 | 58 | 65 | ||||||||
| 20 | 3/4″ | Non-braided | 19.9 | 26.3 | ±0.20 | 32 | 285 | 7 | |||
| Braided | 28.2 | 70 | 55 | ||||||||
| 25 | 1″ | Non-braided | 25.2 | 31.6 | ±0.30 | 40 | 360 | 6 | |||
| Braided | 34.1 | 95 | 49 | ||||||||
| 32 | 1 1/4″ | Non-braided | 33.0 | 41.0 | ±0.30 | 50 | 380 | 4 | |||
| Braided | 43.3 | 105 | 35 | ||||||||
| 40 | 1 1/2″ | Non-braided | 40.1 | 49.8 | ±0.30 | 60 | 430 | 2.5 | |||
| Braided | 51.8 | 130 | 50 | ||||||||
| 50 | 2″ | Non-braided | 50.7 | 60.2 | ±0.40 | 70 | 490 | 2.5 | |||
| Braided | 63.5 | 160 | 26 | ||||||||
When pressure rises, can your hose keep up?
In high-pressure industrial environments, standard hoses often fall short — leading to premature wear, safety risks, and costly system failures.
Prime IFS HD is built for the toughest conditions.
The Prime IFS HD is a heavy-duty evolution of our standard hose, designed with a thicker wall to deliver superior durability and significantly higher pressure resistance. It’s the ideal solution when strength, safety, and long-term performance are critical.
Engineered for extreme performance:
✔ Wide temperature range: Reliable operation from -270°C to 600°C
✔ Reinforced construction: Standard corrugation profile with increased wall thickness for maximum strength and extended lifespan
✔ High-pressure capability: Designed to withstand significantly higher pressures than standard hoses
✔ Flexible configurations: Available with braid for maximum pressure resistance or without braid depending on application needs
Trusted in the most demanding industries:
Prime IFS HD is widely used for high-pressure transfer of liquids and gases in chemical and petroleum sectors, where performance cannot be compromised.
It also excels in heavy-duty industrial applications such as steam lines, turbines, and plate presses, delivering both flexibility and long-term reliability.
Wherever your operation demands high pressure resistance combined with durability, Prime IFS HD delivers with confidence.
Prime IFS HD — Strength You Can Rely On. Performance That Lasts.

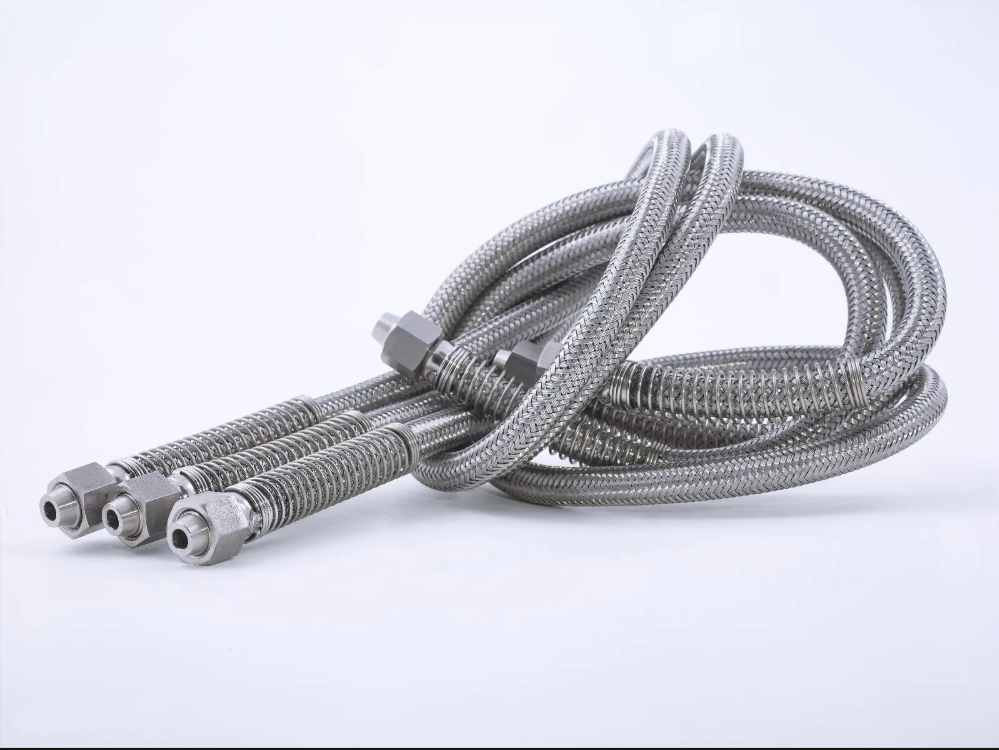

Heavy-Duty Wide Pitch Corrugated Hose (PRIME IFS HD-Wide)
| HWNF: WIDE PITCH BOILER CORRUGATED HEAT EXCHANGER HOSE DIMENSIONS DATA SHEET | ||||||||||
| DN | Inch | Model | Internal Diameter | Outside Diameter | Tolerance | Minimum Bending Radius | Surface Area | Nominal Pressure DIN EN ISO 10380/SF4 | |||
| [mm] | [mm] | [mm] | rmin [mm] | [m²/m] | PN [bar] | ||||||
| 16 | 5/8″ | Non-braided | 16.3 | 21.7 | ± 0.30 | 25 | 0.119 | 16 | |||
| 20 | 3/4″ | Non-braided | 20.1 | 26.2 | ± 0.30 | 30 | 0.145 | 12 | |||
| 25 | 1″ | Non-braided | 25.2 | 31.5 | ± 0.30 | 35 | 0.178 | 10 | |||
| 32 | 1 1/4″ | Non-braided | 33.1 | 40.1 | ± 0.40 | 40 | 0.230 | 6 | |||
| 40 | 1 1/2″ | Non-braided | 40.6 | 49.5 | ± 0.50 | 50 | 0.283 | 6 | |||
| 50 | 2″ | Non-braided | 50.7 | 60.1 | ± 0.50 | 78 | 0.348 | 6 | |||
Need high flow without compromising strength?
In demanding industrial systems, achieving both high flow capacity and durability is a constant challenge. Standard solutions often force you to choose between efficiency and strength — but not anymore.
Prime IFS HD-Wide delivers both.
The Prime IFS HD-Wide combines wide corrugation design with a reinforced, heavy-duty wall structure — offering exceptional robustness while maintaining excellent flow performance in the most demanding environments.
Engineered for power and efficiency:
✔ Extreme temperature resistance: Performs reliably from -270°C to 600°C
✔ Reinforced wide corrugation: Enhanced wall thickness combined with wide pitch design for superior strength and flow capacity
✔ Optimized performance: Delivers high flow rates, increased pressure resistance, and long-term durability
✔ Leak-resistant integrity: Built to ensure safe and consistent operation under extreme conditions
Built for high-demand applications:
Prime IFS HD-Wide is ideal for the transport of industrial gases and process media in steam systems, turbines, and plate presses, where both strength and efficiency are critical.
It is also highly suitable for nuclear technology and advanced HVAC systems, where durability must go hand in hand with high flow performance.
For operations that require resistance to high pressure in harsh environments, Prime IFS HD-Wide provides the reliability you can depend on.
Prime IFS HD-Wide — High Flow. Heavy Duty. Zero Compromise.
What are Prime ifs industrial hoses used for?
Prime ifs industrial hoses are designed for a wide range of applications including industrial systems, machinery connections, fluid transfer, and high-performance installations.
Are Prime ifs industrial hoses resistant to high temperature and pressure?
Yes. Prime ifs industrial hoses are engineered to withstand high temperatures and pressure levels, depending on the hose type and application requirements.
Do Prime ifs industrial hoses comply with international standards?
Prime ifs industrial hoses are manufactured in accordance with relevant international standards such as DIN EN 10380, ensuring safety, durability, and long service life.
Can Prime ifs industrial hoses be customized for specific projects?
Yes. Prime ifs offers customized industrial hose solutions based on project needs, including different lengths, diameters, and connection options.
